Debug Window
dnc4U has a debug window that lets you see data come from
your CNC. Many times its much easier when you are setting
up a CNC to send data this way, because dnc4U is totally tolerant
of data protocol and format errors whereas your CNC machine
will often error out. So we always advise that before you
start to SEND to your CNC, always try and RECEIVE a file out
of it first and send it back to your PC.
The debug window therefore show you the data, without saving
it away, just so you can anlayze the format. dnc4U has several

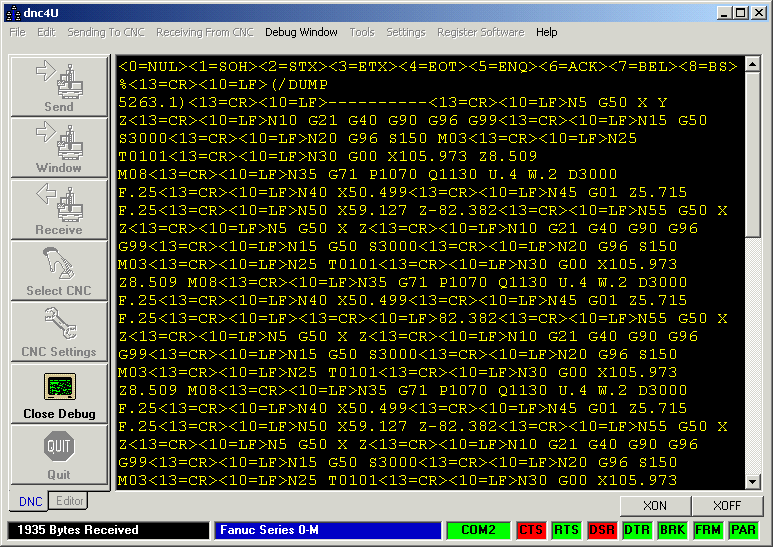

debug options, the one shown below is to debug all CNC control
codes less than ASCII 32 (Space) You can easily see the control
codes and the end of block because they are enclosed between
<> brackets. Here it is quite easy to see that the end
of block is CR/LF
|
| |
|
|
|

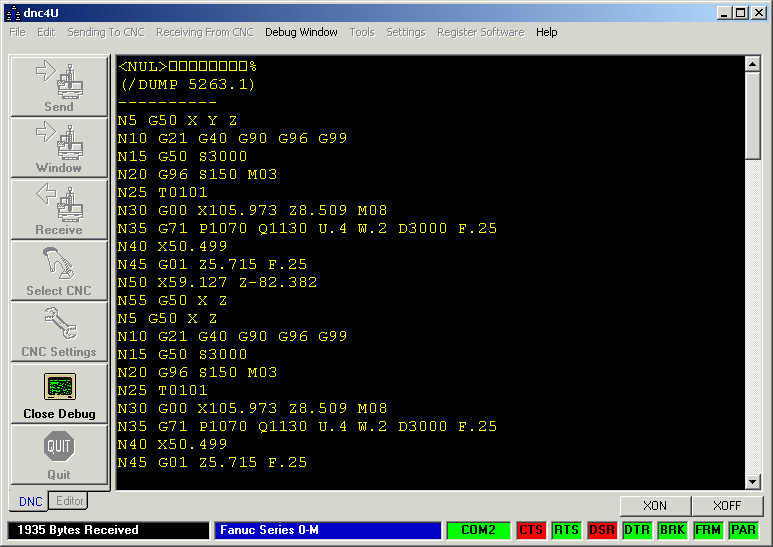

Another of dnc4U's debug options
is to show the data received with the best EOB. This means
that dnc4U analyzes the data on the fly, so that the data
reads OK, otherwise you may just see the data all crunched
up into one long continuous data string or double spaced,
making it difficult to read.(When receiving a file to disk,
this is done automatically unless you specifically define
otherwise)
|
| |
|
|
|

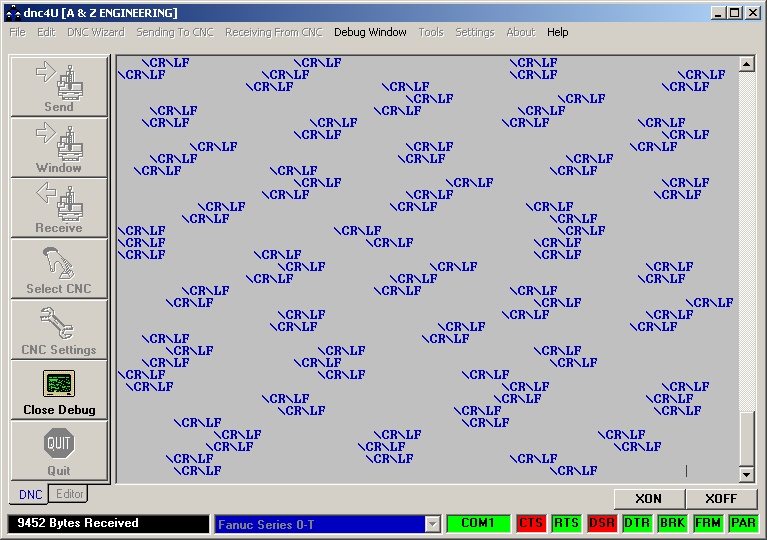

Another of dnc4U's debug options
is to show just the end of blocks.
|
| |
|
|
|
Another of dnc4U's debug options

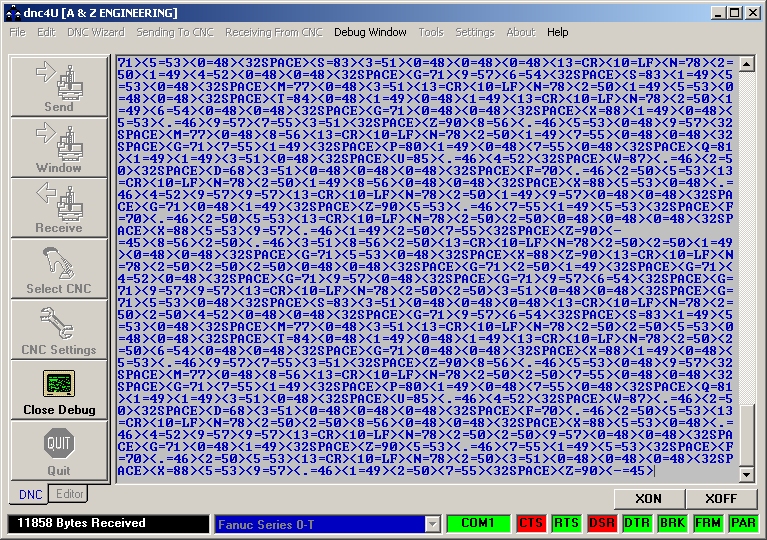

is to show the data fully debugged with it's ASCII code.
|
| |
|
|
|
Another great feature with dnc4U
is that you can save anything that is in the debug windows,
or just highlight the text and send it back to the CNC. You
can also send out XON and XOFF so that whilst watching the
data coming in, you can control flow just by clicking a button,
this is great in determining if your CNC is handshaking properly..
|
| |
|
|
| |
|
| |
| |
|
| |
|
